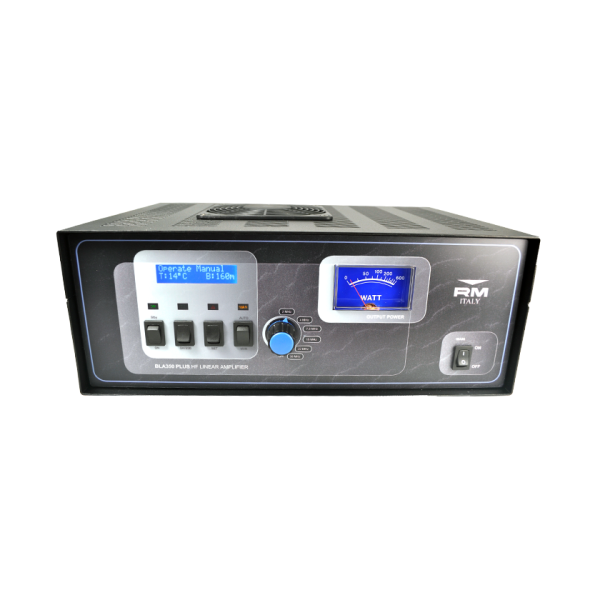

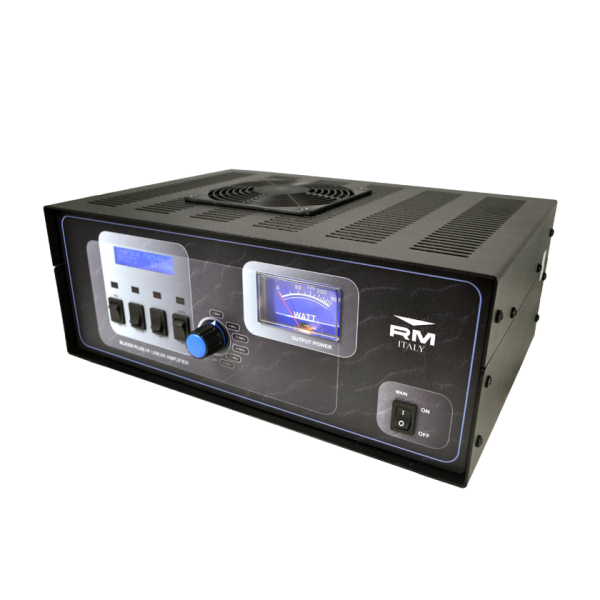

RM BLA 350 Plus

,
The BLA 350 Plus is a 230Vac, (115 and 240 Vac versions also available), compact 300W amplifier for HF broadband use (1.8-30 MHz), with a drive power of 1 – 12 W. It is equipped with six low-pass filters switched automatically by a microprocessor, or they can be switched manually using a front panel control. It features an illuminated LCD display showing the operating status of the amplifier. It also features two cooling fans, one located at the bottom and one at the top of the amplifier. Supplied with AC Power cord. Technical Specifications:
  • Frequency: : 160,80,40,30,20,17,15,12,10m Amateur radio bands – 60m band with reduced harmonic attenuation – No Tx <1.5MHz & >30MHz
  • Power Supply: : AC 110 – 230 – 240 Vac
  • Input Power: 1 – 12 W max
  • Output Power: 300W max
  • Input VSWR: 1.1-1.5:1
  • Protection: Input Power, Filter Error, VSWR, Temperature, Frequency
  • Dimensions:  L 358 W 270 H 160 mm
  • Weight: 13.8 Kg
Προεπισκόπηση

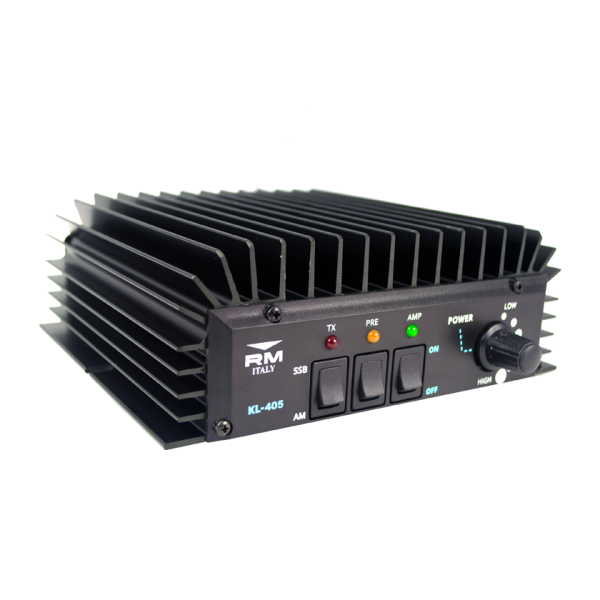

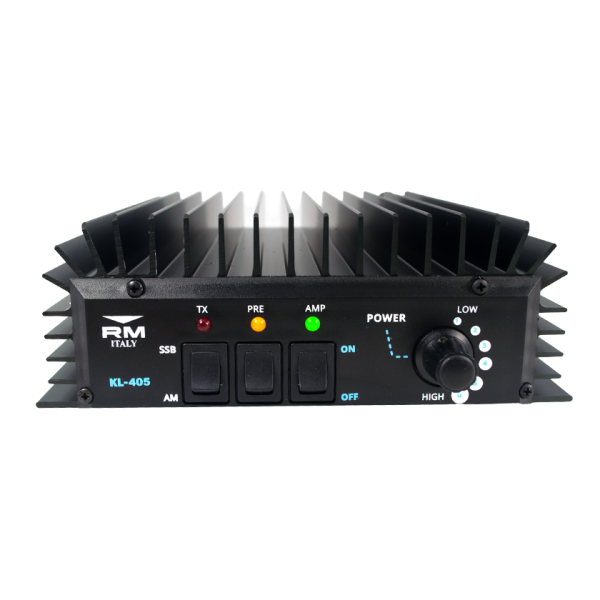

RM KL 405

,
€275.00
The KL 405 is a 180Wmax 12V linear amplifier for use on the 10m Amateur Band, (or other HF bands with the use of a suitable Low Pass Filter). It requires a drive power of 1 to 10W in all modes. The KL 405 features a six position output power selector via a front panel control and a RX preamplifier with electronic switching, which can be activated via a switch on the front panel. Technical Specifications :
  • Frequency: 10m Amateur Band, (1.8-30MHz with LPF)
  • Power Supply: 13.8VDC+/- 1V 30A
  • Input Current: 22 A max
  • Input Power: 1-10W max (All modes)
  • Output Power: 180W max
  • Input VSWR: 1.1-1.5:1
  • Fuse: 3x12A Fast 5x20mm
  • Dimensions: L 215 W 190 H 67 mm
  • Weight: 1.350 g
Προεπισκόπηση

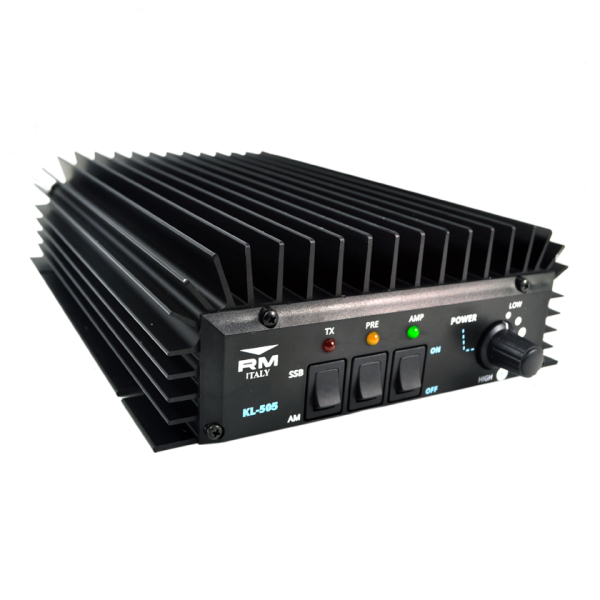

RM KL 505

,
€390.00
The KL 505 is a 230Wmax 12V linear amplifier for use on the 10m Amateur Band, (or other HF bands with the use of a suitable Low Pass Filter). It requires a drive power of 1 to 10W in all modes. The KL 505 features a six position output power selector via a front panel control and a RX preamplifier with electronic switching, which can be activated via a switch on the front panel. Technical Specifications :
  • Frequency: 10m Amateur Band, (1.8-30MHz with LPF)
  • Power Supply: 13.8VDC+/- 1V 50A
  • Input Current: 35 A max
  • Input Power: 1-10W max (All modes)
  • Output Power: 230W max
  • Input VSWR: 1.1-1.5:1
  • Fuse: 3x12A Fast 5x20mm
  • Dimensions:  L 300 W 190 H 67 mm
  • Weight: 2.050 g
