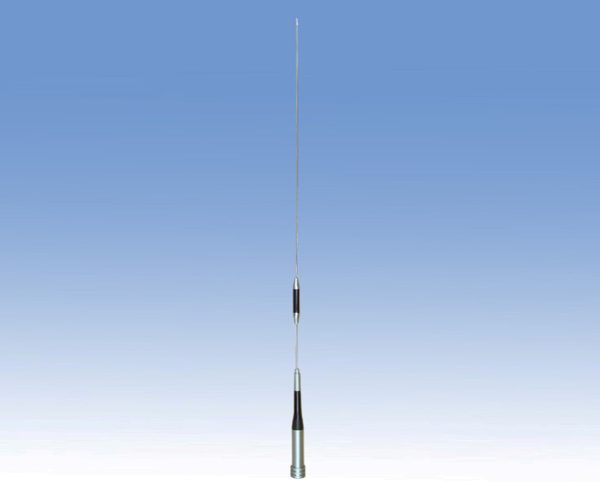

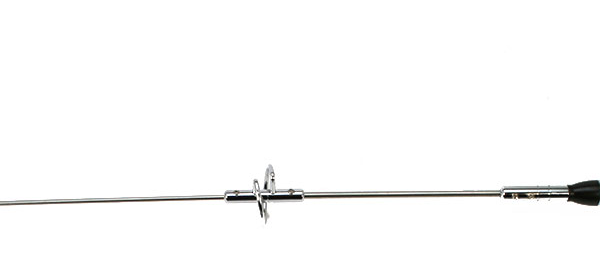

MAAS AM-506 Duoband mobile antenna 2m 70 cm
Noble and high-quality cellular antenna 2 m / 70 cm PL dual band radiator with tilt joint
Technical data
| frequency | · Dual band VHF 144 MHz./ UHF 430 MHz |
| Profit | · VHF 2.5 dBi / UHF 4.5 dBi |
| Impedance | · 50 ohms |
| Maximum power | · 50 watts / 60 watts SSB PEP |
| type | · 1/2 Lambda VHF / 2 x 5/8 Lambda UHF |
| material | · Stainless steel chrome with tilt joint |
| connection | · PL (UHF-male) |
| length | · 67 cm |
| Weight | · 165 g |
| · |

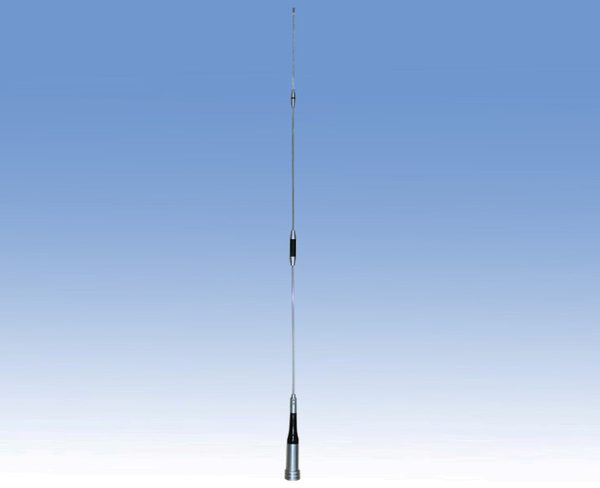

MAAS AM-7500 Duoband mobile antenna 2m 70 cm
Noble and high-quality cellular antenna 2 m / 70 cm PL dual band radiator with tilt joint
Technical data
| frequency | · Dual band VHF 144 MHz./ UHF 430 MHz |
| Profit | · VHF 3.5 dBi / UHF 6 dBi |
| Impedance | · 50 ohms |
| Maximum power | · 150 watts |
| type | · 1/2 Lambda VHF / 2 x 5/8 Lambda UHF |
| material | · Stainless steel chrome with tilt joint |
| connection | · PL (UHF-male) |
| length | · 106 cm |
| Weight | · 330 g |

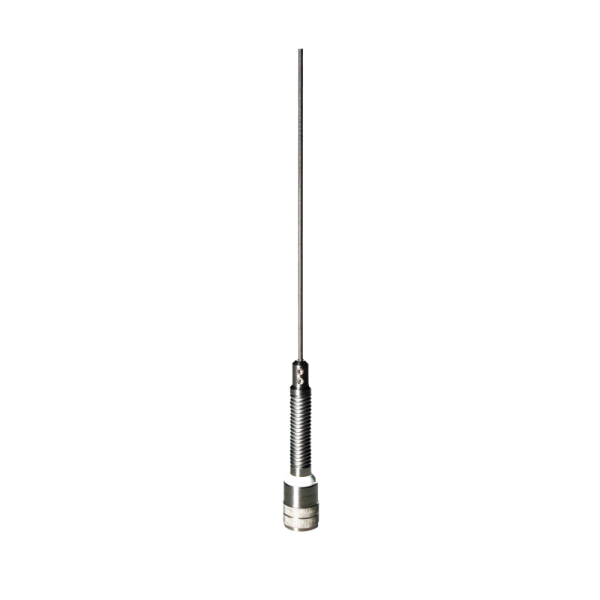

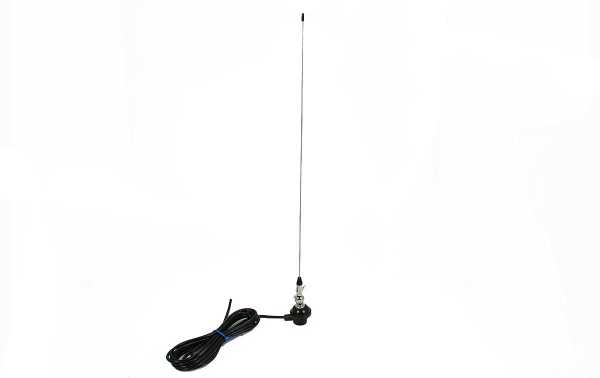

SIRIO MGA 108-550 PL
| Type: | 1/4 λ |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |
| Frequency range: | 108 … 550 MHz Tunable |
| Systems: | 2m-HAM, 1.25m-HAM, 70cm-HAM, VHF Airband, VHF Marine Band, ORBCOMM M2M, AIS-162MHz, TETRA-350, TETRA, CDMA-450, LTE-450, ISM-169MHz, VHF-260MHz |
| Gain: | 0 dB ref. to a λ/4 whip |
| Bandwidth: | ≥ 11.5MHz @ SWR ≤ 2 |
| Max Power: | 100 W (CW) |
| Connector: | UHF-male (PL-259) |
| Materials: | Chromed brass, Stainless steel |
| Height (approx): | 670 mm / 2.2 ft |
| Weight (approx): | 70 gr / 0.15 lb |

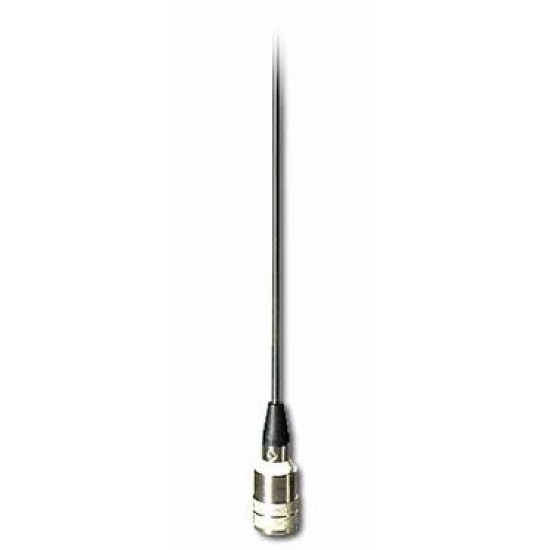

SIRIO SMA 108-550 PL
Electrical Data:
Mechanical Data:
| Type: | 1/4 λ |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |
| Frequency range: | 108 … 550 MHz Tunable |
| Systems: | 2m-HAM, 1.25m-HAM, 70cm-HAM, VHF Airband, VHF Marine Band, ORBCOMM M2M, AIS-162MHz, TETRA-350, TETRA, CDMA-450, LTE-450, ISM-169MHz, VHF-260MHz |
| Gain: | 0 dB ref. to a λ/4 whip |
| Bandwidth: | ≥ 11MHz @ SWR ≤ 2 |
| Max Power: | 100 W (CW) |
| Connector: | UHF-male (PL-259) |
| Materials: | Chromed brass, Stainless steel |
| Height (approx): | 663 mm / 2.18 ft |
| Weight (approx): | 55 gr / 0.12 lb |
| Mounting type: | On-Connector |
