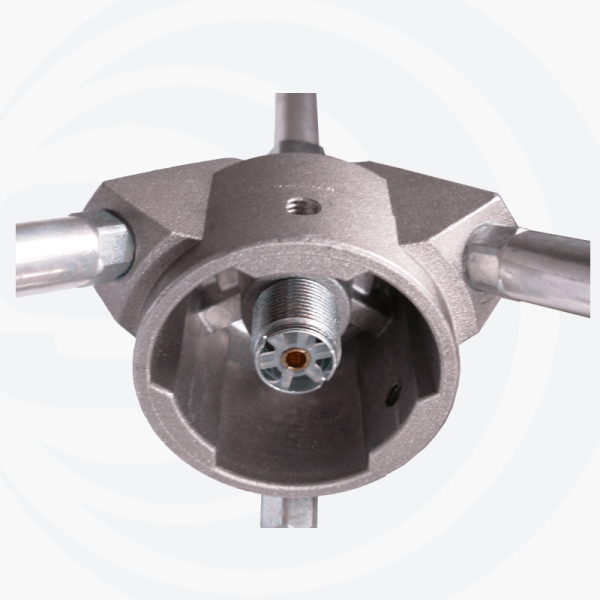

SIRIO GPA 27-45

Electrical Data:
Type: 1/4 λ ground plane
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range:   27 … 45 MHz Tunable
Systems: 10m-HAM, 6m-HAM, 2m-HAM, 1.25m-HAM, VHF Airband, VHF Marine Band, VHF Low-band (66-88MHz), ORBCOMM M2M, AIS-162MHz, FM, ISM-169MHz
Gain: 0 dBd – 2.15 dBi
Bandwidth: ≥ 2.5MHz @ SWR ≤ 2
Max Power: 1000 W (CW)
Connector: UHF-female (SO-239)
Mechanical Data:
Materials: Aluminium, Chromed brass, Zamak
Height (approx): 4730 mm / 15.52 ft
Weight (approx): 1250 gr / 2.76 lb
Mounting type: On-Mast
Προεπισκόπηση

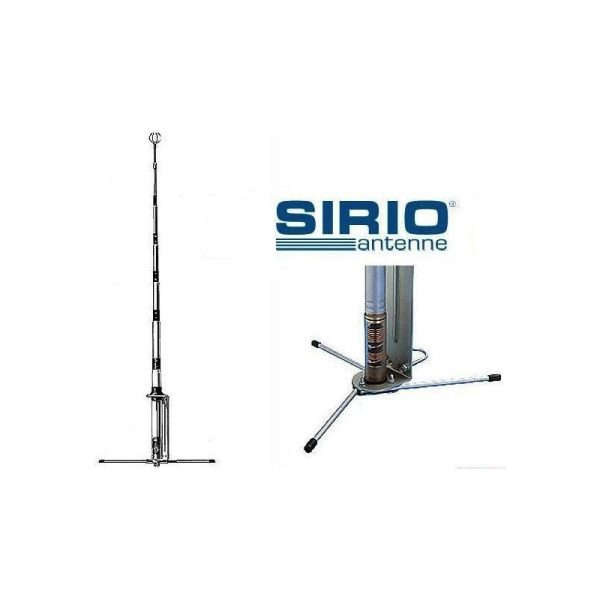

SIRIO GPE 27 5/8 26.4-29 Mhz

€69.00
  • Type: GPE 27 5/8: 5/8λ ground plane
  • Frequency range: tunable from 26.4 to 29.0 MHz
  • Impedance: 50Ω
  • Radiation (H-plane): 360° omnidirectional
  • Polarization: linear vertical
  • Gain: GPS 27 1/2: 0 dBd, 2.15 dBi
  • Bandwidth @ SWR ≤ 2: ≥ 1600 KHz
  • SWR @ res. freq.: ≤ 1.3
  • Max. power: 250 Watts (CW) continuous ; 750 Watts (CW) short time
  • Feed system / position: Transformer DC-ground / base
  • Connector: UHF-female

  • Materials: Aluminium, Steel, Copper, Nylon
  • Wind resistance: 130 Km/h
  • Wind load: GPE 27 5/8: 188 N at 150 Km/h
  • Wind surface: GPE 27 5/8: 0.13 m²
  • Height (approx.): 5950 mm
  • Weight (approx.): 2500 gr
  • Radial length (approx.): GPE 27 5/8 1320 mm
  • Mounting mast: Ø 35-42 mm
Προεπισκόπηση

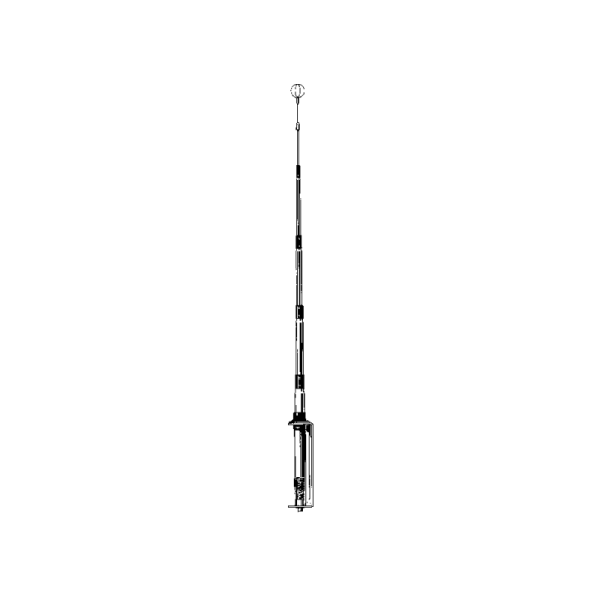

SIRIO GPS 27 L/2

€59.00
  • Type : 1/2 Wave
  • Frequency range: 26-28 MHz
  • Impedance: 50 Ohm unbalanced
  • Radiation (H-plane): 360deg omni-directional
  • Polarization: vertical
  • Gain : 2: 0 dBd, 2.15 dBi
  • Bandwidth at S.W.R. 2:1: 1400 KHz
  • S.W.R. at res. freq.: = 1.2:1
  • Max. power : 250 Watts (CW) continuous, 750 Watts (CW) short time
  • Feed system / position: Transformer DC-ground / base
  • Connector: UHF-female
  • Materials: Aluminium, Steel, Copper, Nylon
  • Wind resistance: 130 Km/h
  • Wind load : 156 N at 150 Km/h
  • Wind surface : 0.11 sqm
  • Length (approx.) : 5750 mm
  • Weight (approx.): 2500g
  • Radial length (approx.) : 1320 mm
  • Mounting mast: 35-42 mm
Προεπισκόπηση

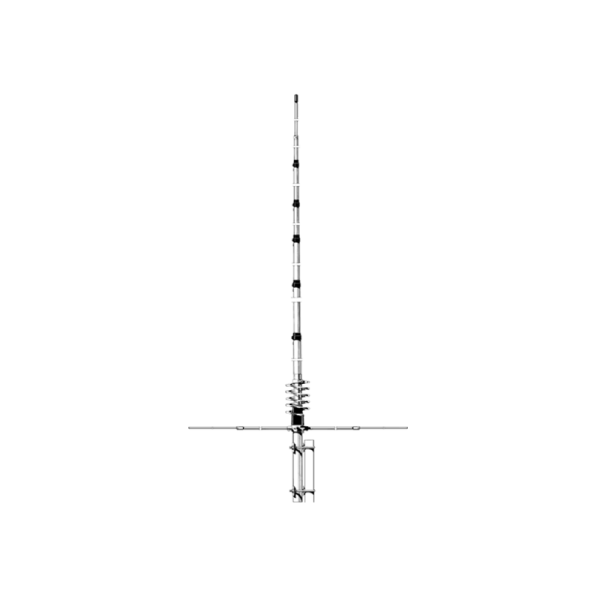

SIRIO NEW TORNADO 27

€93.00
Base station antenna Omnidirectional High power handling capability Whip equipped whit waterproof jointing sleeve Made of aluminium alloy 6063 T-832 UP-GRADE: Tunable by whip length adjusting Electrical Data Type: 5/8 λ ground plane Frequency range: tunable form 27 to 30 MHz Impedance: 50Ω Radiation (H-plane): 360° omnidirectional Polarization: linear vertical Gain: 1.2 dBd, 3.35 dBi Bandwidth @ SWR ≤ 2: ≥ 1300 KHz SWR @ res. freq.: ≤ 1.2 @ 27 MHz Max. power: 1000 Watts (CW) continuous 3000 Watts (CW) short time Feed system / position: Transformer DC-ground / base Connector: UHF-female Mechanical Data Materials: Aluminium, Steel, Nylon Wind load / resistance: 187 N at 150 Km/h / 130 Km/h Wind surface: 0.16 m² Height (approx.): 7230 mm Weight (approx.): 2900 gr Radial Length (approx.): 2000 mm Mounting mast: Ø 35-42 mm
Προεπισκόπηση

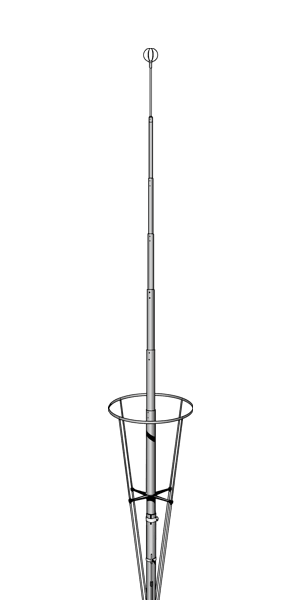

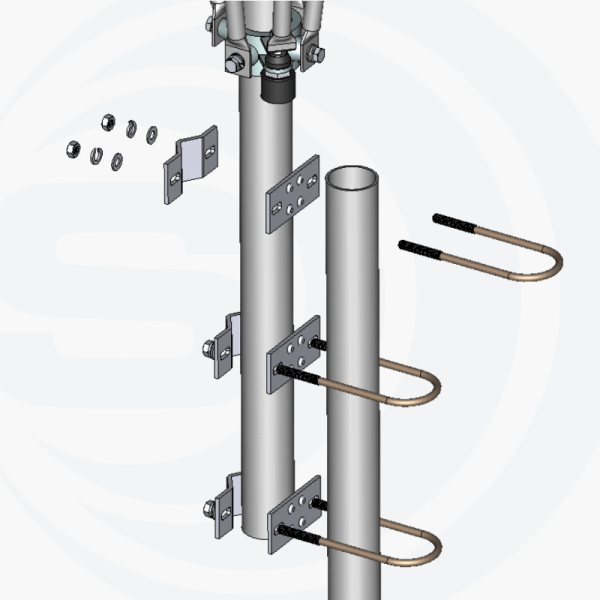

SIRIO NEW VECTOR 4000

Electrical Data:
Type: 3/4 λ coaxial J-pole
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 27 ... 28.5 MHz Tunable
Systems: 10m-HAM
Gain: 2 dBd, 4.15 dBi
Bandwidth: ≥ 1.4MHz @ SWR ≤ 2
Max Power: 1000 Watts (CW) continuous 3000 Watts (CW) short time
Grounding protection: All metal parts are DC-grounded, the inner conductor is coupled capacitively
Connector: UHF-female (SO-239)
Mechanical Data:
Materials: Aluminium, Brass, Galvanized steel, Nylon
Height (approx): 8480 mm / 27.82 ft
Weight (approx): 4700 gr / 10.36 lb
Mounting type: On-Mast
Προεπισκόπηση

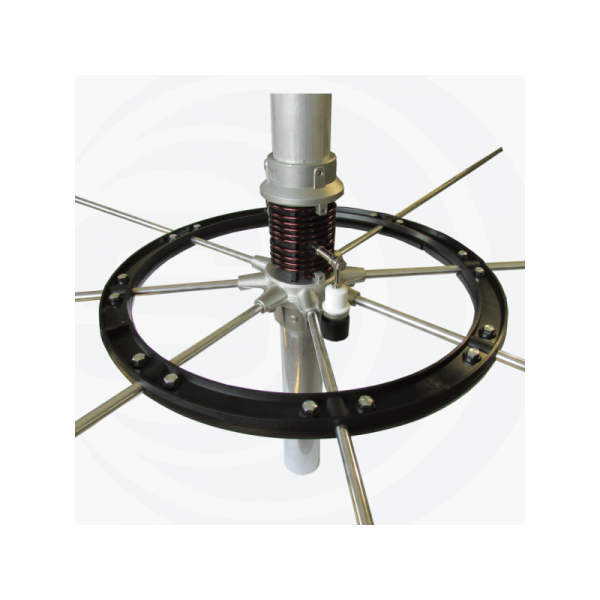

SIRIO RADIAL REINFORCEMENT NYLON RING S-827

€19.00
Materials: Stainless steel, Nylon
Dimensions (approx): Ø350 x 8 mm / Ø1.15 x 0.03 ft
Προεπισκόπηση

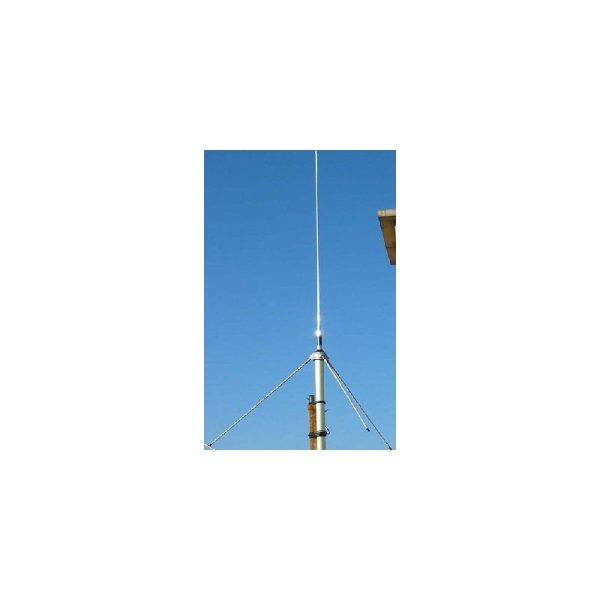

SIRIO SIGNAL KEEPER

€57.00
-              Type: 1/4 λ base loaded ground plane -              Frequency range: 26-28 MHz -              Impedance: 50Ω -              Radiation (H-plane): 360° omnidirectional -              Polarization: linear vertical -              Gain: 0 dBd, 2.15 dBi -              Bandwidth @ SWR ≤ 2: ≥ 850 KHz -              SWR @ res. freq.: ≤ 1.2 -              Max. power: 100 Watts (CW) continuous 300 Watts (CW) short time -              Feed system / position: Direct / Center -              Connector: UHF-female   -              Materials: Aluminium, Steel, Nylon -              Wind load / resistance: 36 N at 150 Km/h / 130 Km/h -              Wind surface: 0.03 m² -              Height (approx.): 2370 mm -              Weight (approx.): 640 gr -              Radial length (approx.): 640 mm -              Mounting mast: Ø 35-40 mm
Προεπισκόπηση

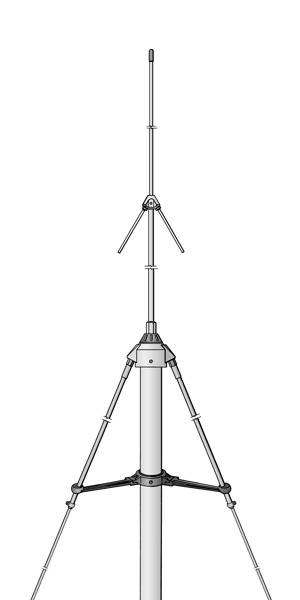

SIRIO STARDUSTER M-400

Electrical Data:
Type: 1/4 λ ground plane
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 26.5 ... 30 MHz Tunable
Systems: 10m-HAM
Gain: 0 dBd, 2.15 dBi
Bandwidth: ≥ 2MHz @ SWR ≤ 2
Max Power: 1000 Watts (CW) continuous 3000 Watts (CW) short time
Connector: UHF-female (SO-239)
Mechanical Data:
Materials: Aluminium, Chromed brass, Nylon
Height (approx): 5040 mm / 16.54 ft
Weight (approx): 1230 gr / 2.71 lb
Mounting type: On-Mast
Προεπισκόπηση

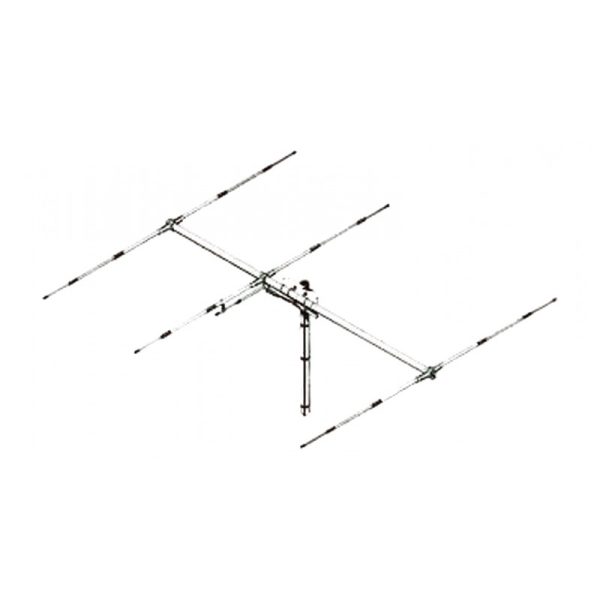

SIRIO SY 27-3 3 Element Yagi Beam Antenna

€155.00
  • Type: SY 27-3: 3 element Yagi antenna
  • Frequency range: SY 27-3: 26.1-27.7 MHz @ SWR ≤ 2
  • System: 10M-HAM
  • Impedance: 50Ω
  • Radiation (H-plane): directional
  • Polarization: linear horizontal
  • Gain: SY 27-3: 8.5 dBd, 10.65 dBi
  • Bandwidth @ SWR ≤ 2: SY 27-3: ≥ 1800 KHz
  • SWR @ res. freq.: ≤ 1.2
  • Max. power: 1000 Watts (CW) continuous 3000 Watts (CW) short time
  • Feed system / position: Gamma match / center
  • Connector: UHF-female
Προεπισκόπηση

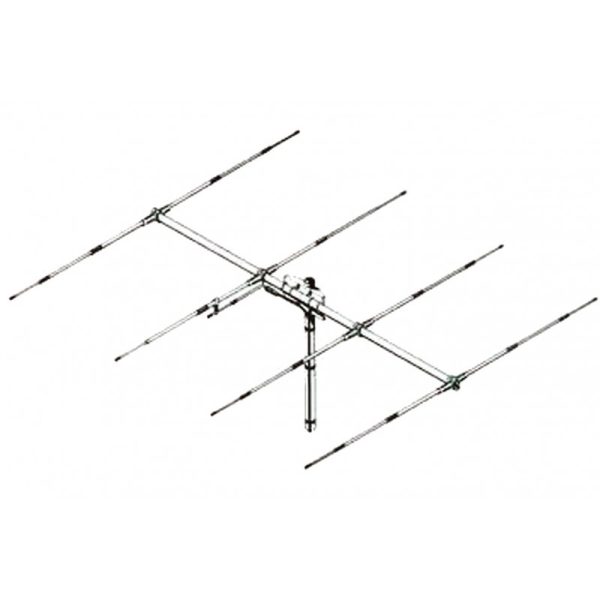

SIRIO SY 27-4 4 Element Yagi Beam Antenna

€215.00
  • Type: SY 27-4: 4 element Yagi antenna
  • Frequency range: SY 27-4: 26.9-27.5 MHz @ SWR ≤ 2
  • System: 10M-HAM
  • Impedance: 50Ω
  • Radiation (H-plane): directional
  • Polarization: linear horizontal
  • Gain: SY 27-4: 11 dBd, 13.15 dBi
  • Bandwidth @ SWR ≤ 2: SY 27-4: ≥ 600 KHz
  • SWR @ res. freq.: ≤ 1.2
  • Max. power: 1000 Watts (CW) continuous 3000 Watts (CW) short time
  • Feed system / position: Gamma match / center
  • Connector: UHF-female
Προεπισκόπηση

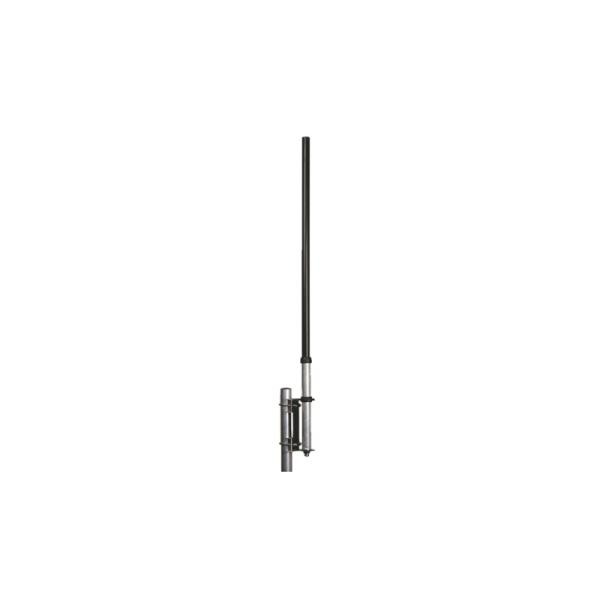

SIRIO THUNDER 27

€38.00
  • Type: 1/4 λ helical loaded dipole
  • Frequency range: 25-29 MHz
  • Impedance: 50Ω
  • Radiation (H-plane): 360° omnidirectional
  • Polarization: linear vertical
  • Gain: 0 dBd, 2.15 dBi
  • Bandwidth @ SWR ≤ 2: ≥ 5000 KHz
  • SWR @ res. freq.: ≤ 1.5
  • Max. power: 100 Watts (CW) continuous 300 Watts (CW) short time
  • Feed system / position: Direct / Base
  • Connector: UHF-female

  • Materials: Aluminium, Steel, Nylon, Copper
  • Wind load / resistance: 36 N at 150 Km/h / 180 Km/h
  • Wind surface: 0.03 m²
  • Height (approx.): 960 mm
  • Weight (approx.): 700 gr
  • Mounting mast: Ø 25-32 mm
