Showing all 5 results

Προβολή μπάρας
Προβολή 9 12 18 24

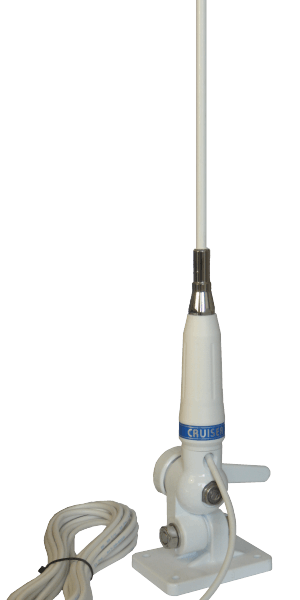

Sirio CRUISER VHF

€74.00
Electrical Data:
Type: 1/2 λ Base loaded
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 154 – 162.6 MHz No tuning required
Systems: VHF Marine Band
Gain: 0 dBd – 2.15 dBi
Max Power: 100 W (CW)
Grounding protection: DC-Ground
Cable lenght / type: 5 m (16.4 ft) / Low loss
Connector: Not supplied
Mechanical Data:
Materials: Chromed brass, Fiberglass, Nylon
Height (approx): 1100 mm / 3.61 ft
Weight (approx): 680 gr / 1.5 lb
Mounting type: Thru-Holes
Προεπισκόπηση

Sirio SB 1 S

€55.00
Electrical Data:
Type: 1/2 λ
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: TX band: 156 – 157.425 MHz @ SWR ≤ 1.5 RX band: 156 – 162 MHz @ SWR ≤ 2
Systems: VHF Marine Band
Gain: 0 dBd – 2.15 dBi
Max Power: 100 W (CW)
Grounding protection: DC-Ground
Connector: UHF-female (SO-239)
Mechanical Data:
Materials: Chromed brass, Fiberglass, Nylon
Height (approx): SB 1 S: 955 mm / 3.13 ft SB 2 S: 1040 mm / 3.41 ft
Weight (approx): SB 1 S: 360 gr / 0.79 lb SB 2 S: 330 gr / 0.73 lb
Mounting type: On-Mast, On-Wall
Προεπισκόπηση

Sirio SB 2 S

€55.00
Electrical Data:
Type: 1/2 λ
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: TX band: 156 – 157.425 MHz @ SWR ≤ 1.5 RX band: 156 – 162 MHz @ SWR ≤ 2
Systems: VHF Marine Band
Gain: 0 dBd – 2.15 dBi
Max Power: 100 W (CW)
Grounding protection: DC-Ground
Connector: UHF-female (SO-239)
Mechanical Data:
Materials: Chromed brass, Stainless Steel 17/7 PH
Height (approx): SB 1 S: 955 mm / 3.13 ft SB 2 S: 1040 mm / 3.41 ft
Weight (approx): SB 1 S: 360 gr / 0.79 lb SB 2 S: 330 gr / 0.73 lb
Mounting type: On-Mast, On-Wall
Προεπισκόπηση

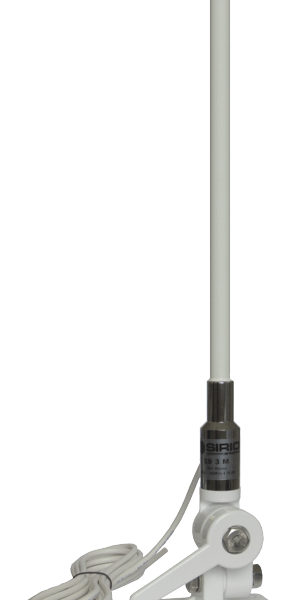

Sirio SB 3 M

€65.00
Electrical Data:
Type: 3/4 λ J-pole
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 155.5 - 160 MHz No tuning required
Systems: VHF Marine Band
Gain: 2 dBd – 4.15 dBi
Max Power: 100 W (CW)
Grounding protection: DC-Ground
Cable lenght / type: 5 m (16.4 ft) / Low loss
Connector: Not supplied
Mechanical Data:
Materials: Chromed brass, Fiberglass, Nylon
Height (approx): 1480 mm / 4.86 ft
Weight (approx): 750 gr / 1.65 lb
Mounting type: Thru-Holes
Προεπισκόπηση

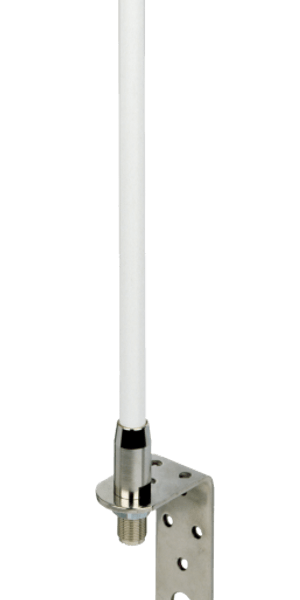

Sirio SB 3 U

€55.00
Electrical Data:
Type: 3/4 λ J-pole
Radiation: Omnidirectional
Polarization: Linear vertical
Frequency range: 155.8 – 160.1 MHz No tuning required
Systems: VHF Marine Band
Gain: 2 dBd – 4.15 dBi
Max Power: 100 W (CW)
Grounding protection: DC-Ground
Cable lenght / type: Not supplied
Connector: UHF-female (SO-239)
Mechanical Data:
Materials: Chromed brass, Fiberglass, Nylon
Height (approx): 1465 mm / 4.81 ft
Weight (approx): 300 gr / 0.66 lb
Mounting type: On-Mast, On-Wall
Προεπισκόπηση
