D-Original AV-SW3N
€72.00

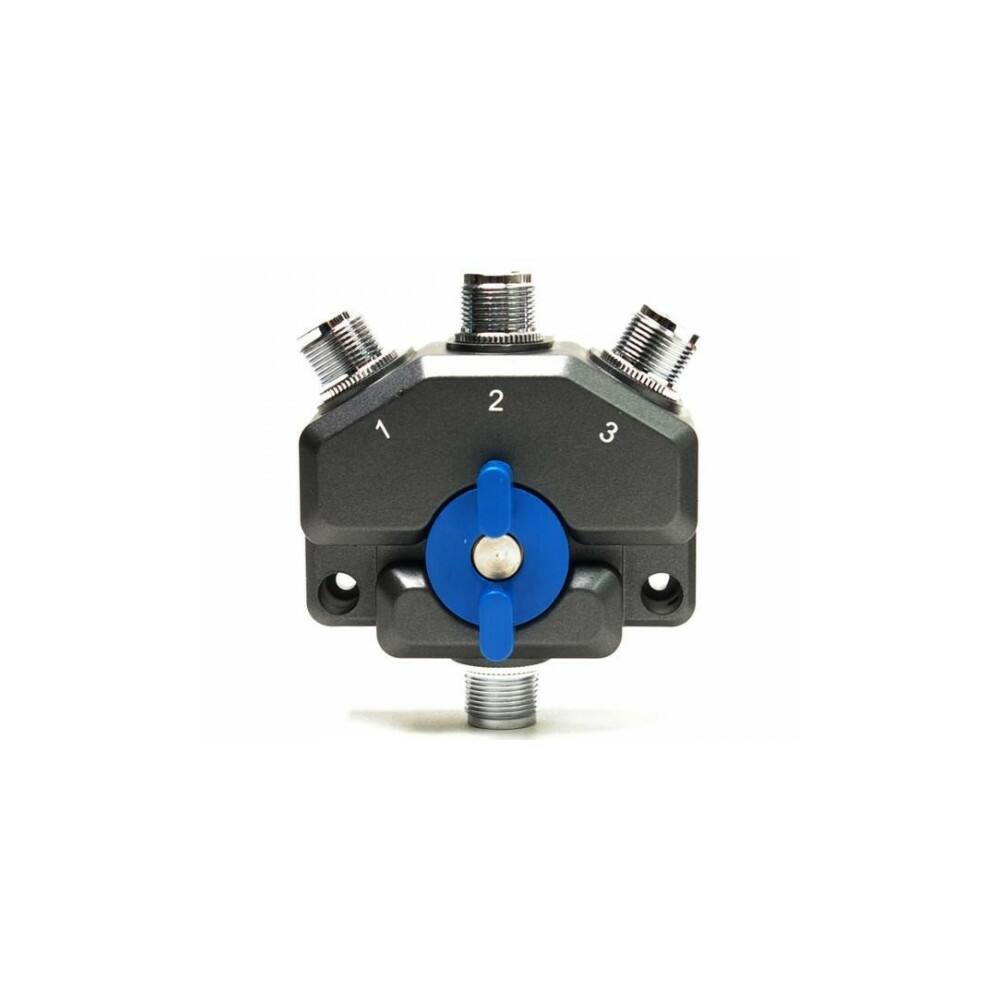

3 – POSITION COAXIAL ANTENNA SWITCH
Connector Type PL-259 Female – N Female Connector
SPECIFICATIONS:
| FREQUENCY RANGE | DC ~ 1.5GHz |
| POWER RANGE DC ~ 30MHz 30MHz ~ 200MHz 200MHz ~ 500MHz 500MHz ~ 1GHz 1Ghz ~ 3GHz |
1.5KW 1KW 500W 250W 150W |
| INSERTION LOSS DC ~ 500MHz 500MHz ~ 1GHz 1GHz ~ 2GHz 2GHz ~ 3GHz |
≥0.05dB ≥0.1dB ≥0.15B ≥0.2dB |
| ISOLATION DC ~ 500MHz 500MHz ~ 1GHz 1GHz ~ 2GHz 2GHz ~ 3GHz |
≥70.0dB ≥60.0dB ≥55.0Db ≥50.0dB |
| VSWR DC ~ 500MHz 500MHz ~ 1GHz 1GHz ~ 2GHz 2GHz ~ 3GHz |
≥1.10 ≥1.15 ≥1.20 ≥1.25 |
PACKAGING: Blister Packing
