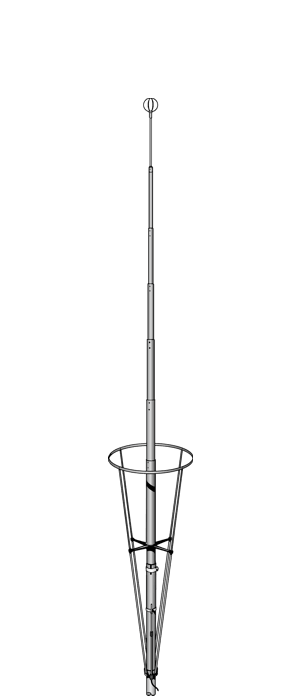

SIRIO NEW VECTOR 4000
Electrical Data:
| Type: | 3/4 λ coaxial J-pole |
| Radiation: | Omnidirectional |
| Polarization: | Linear vertical |
| Frequency range: | 27 … 28.5 MHz Tunable |
| Systems: | 10m-HAM |
| Gain: | 2 dBd, 4.15 dBi |
| Bandwidth: | ≥ 1.4MHz @ SWR ≤ 2 |
| Max Power: | 1000 Watts (CW) continuous 3000 Watts (CW) short time |
| Grounding protection: | All metal parts are DC-grounded, the inner conductor is coupled capacitively |

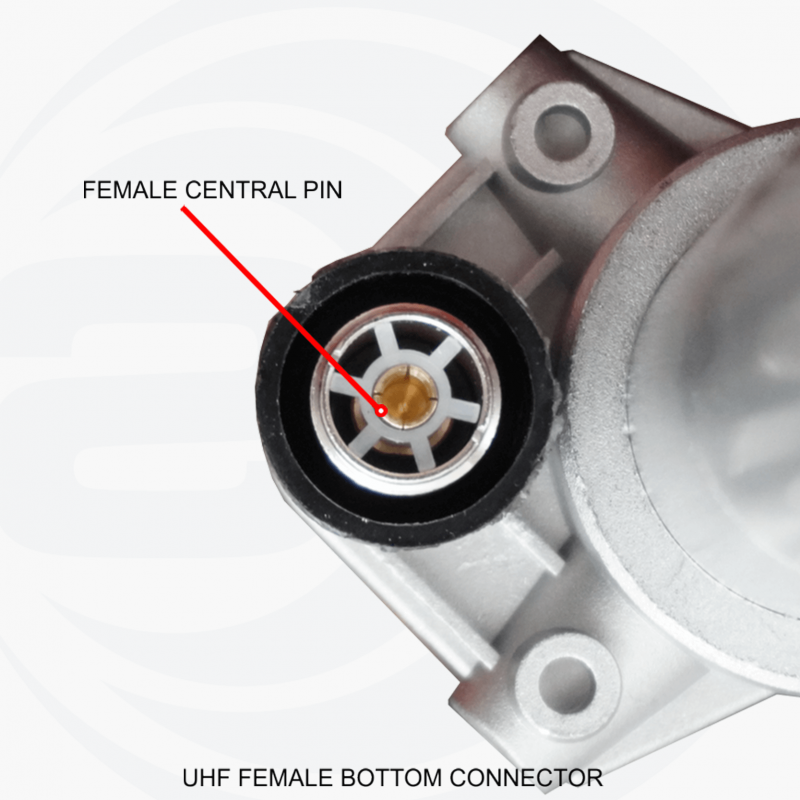

| Connector: | UHF-female (SO-239) |
Mechanical Data:
| Materials: | Aluminium, Brass, Galvanized steel, Nylon |
| Height (approx): | 8480 mm / 27.82 ft |
| Weight (approx): | 4700 gr / 10.36 lb |

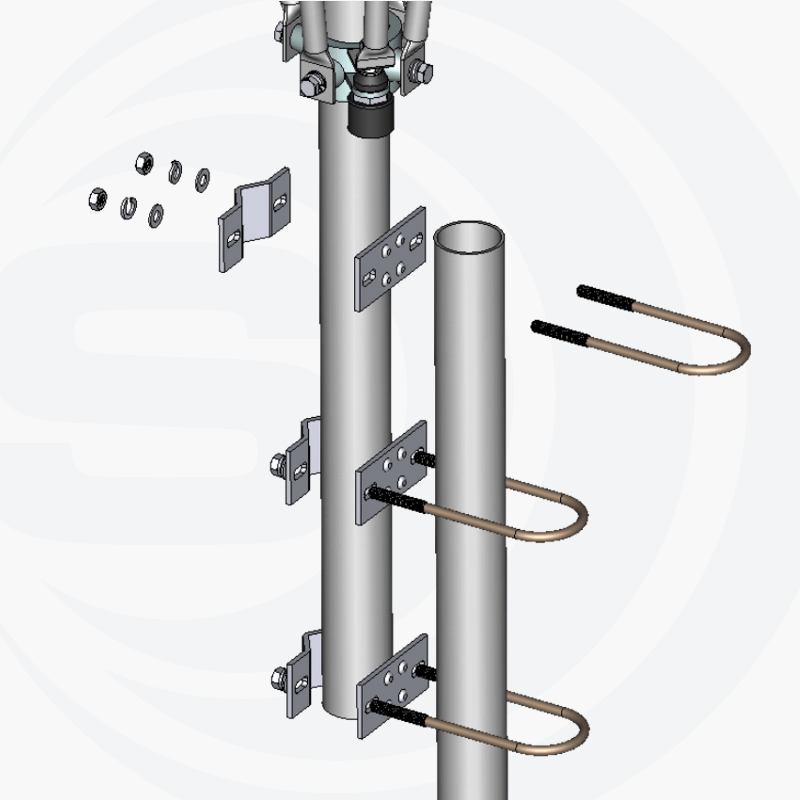

| Mounting type: | On-Mast |
