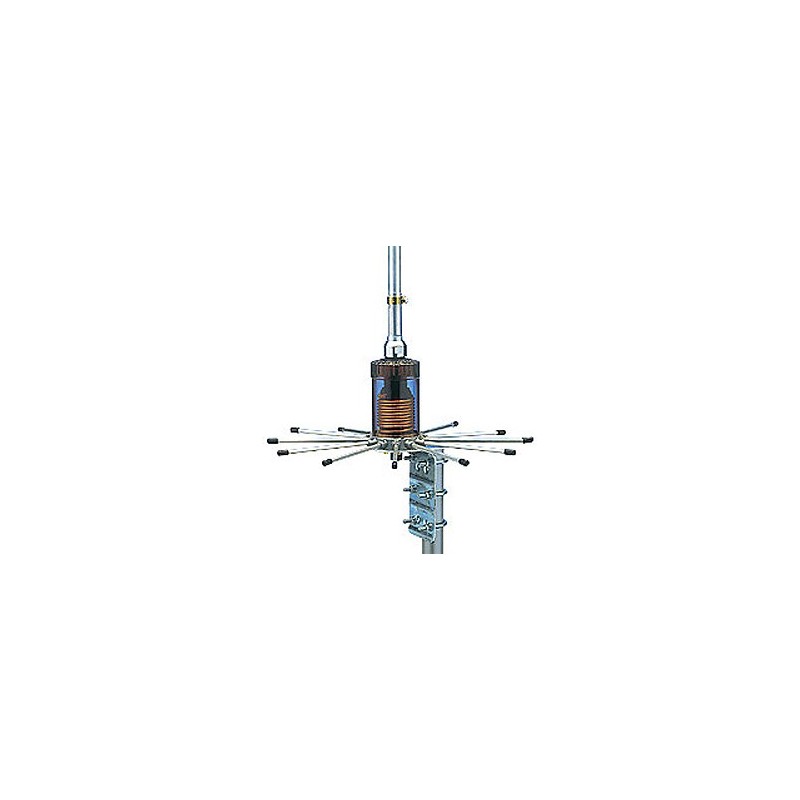

SIRIO 2016

–              Type: 5/8λ ground plane

–              Frequency range: tunable from 26.4 to 28.2 MHz

–              Impedance: 50Ω

–              Radiation (H-plane): 360° omnidirectional

–              Polarization: linear vertical

–              Gain: 1.3 dBd, 3.45 dBi

–              Bandwidth @ SWR ≤ 2:

SIRIO 2016 : ≥ 2100 KHz

–              SWR @ res. freq.: ≤ 1.1

–              Max. power:

1000 Watts (CW) continuous

3000 Watts (CW) short time

–              Feed system / position: Transformer DC-ground / base

–              Connector: UHF-female

–              Materials: Aluminium, Copper, Nylon

–              Wind load / resistance: 166 N at 150 Km/h / 130 Km/h

–              Wind surface: 0.14 m²

–              Height (approx.): 6100 mm

–              Weight (approx.): 5300 gr

–              Radial length (approx.):

SIRIO 2016 : 700 mm

–              Mounting mast: Ø 40-50 mm
