Electrical Data:
| Type: |
1/2 λ |
| Radiation: |
Omnidirectional |
| Polarization: |
Linear vertical |
| Frequency range: |
TX band: 156 – 157.425 MHz @ SWR ≤ 1.5
RX band: 156 – 162 MHz @ SWR ≤ 2 |
| Systems: |
VHF Marine Band |
| Gain: |
0 dBd – 2.15 dBi |
| Max Power: |
100 W (CW) |
| Grounding protection: |
DC-Ground |

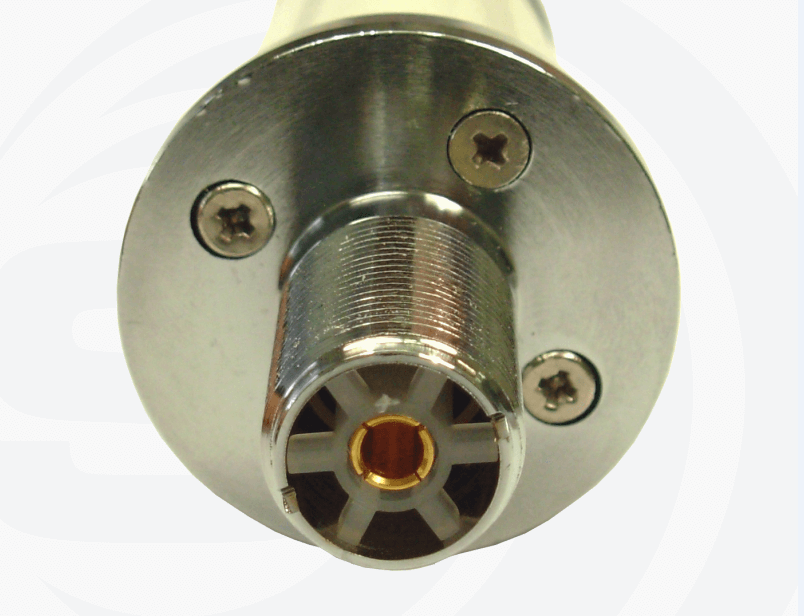

| Connector: |
UHF-female (SO-239) |
Mechanical Data:
| Materials: |
Chromed brass, Fiberglass, Nylon |
| Height (approx): |
SB 1 S:
955 mm / 3.13 ft
SB 2 S:
1040 mm / 3.41 ft |
| Weight (approx): |
SB 1 S:
360 gr / 0.79 lb
SB 2 S:
330 gr / 0.73 lb |
| Mounting type: |
On-Mast, On-Wall |
|
|
