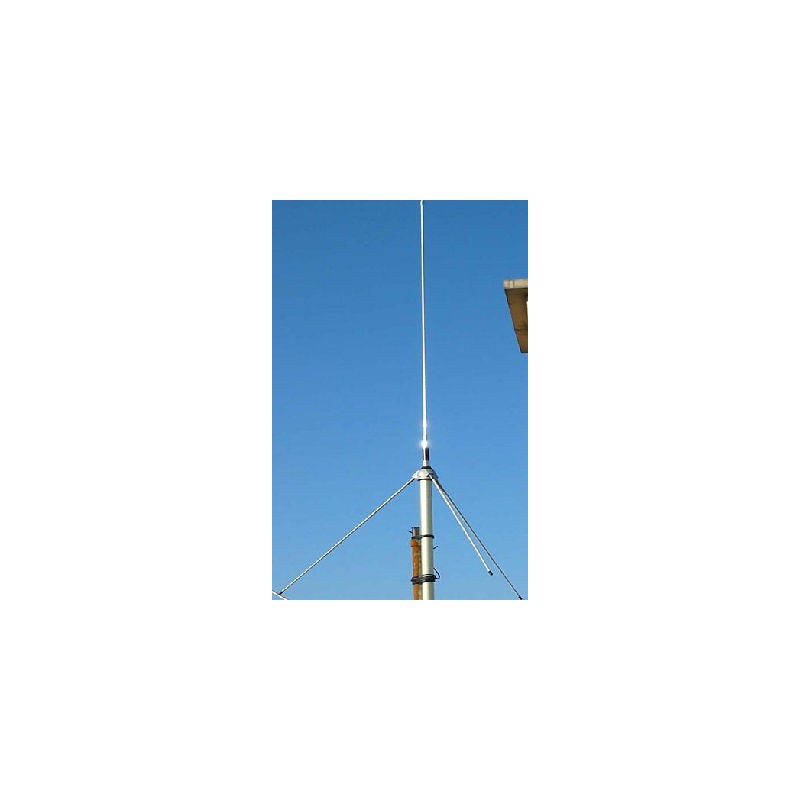

SIRIO SIGNAL KEEPER
€57.00
– Type: 1/4 λ base loaded ground plane
– Frequency range: 26-28 MHz
– Impedance: 50Ω
– Radiation (H-plane): 360° omnidirectional
– Polarization: linear vertical
– Gain: 0 dBd, 2.15 dBi
– Bandwidth @ SWR ≤ 2: ≥ 850 KHz
– SWR @ res. freq.: ≤ 1.2
– Max. power:
100 Watts (CW) continuous
300 Watts (CW) short time
– Feed system / position: Direct / Center
– Connector: UHF-female
– Materials: Aluminium, Steel, Nylon
– Wind load / resistance: 36 N at 150 Km/h / 130 Km/h
– Wind surface: 0.03 m²
– Height (approx.): 2370 mm
– Weight (approx.): 640 gr
– Radial length (approx.): 640 mm
– Mounting mast: Ø 35-40 mm
